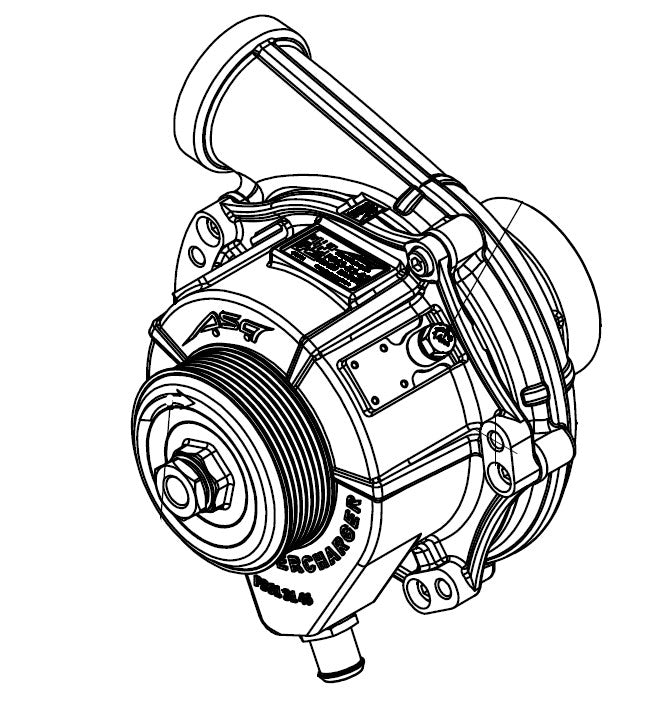

ASA T1 – 316 C13

Technical documents

ASA T1-317 Compressor – Maximum performance for demanding applications

The ASA T1-317 supercharger is a high-performance centrifugal compressor specifically engineered for maximum efficiency, durability, and performance. Thanks to its precise manufacturing and high-quality materials, it is the ideal choice for customers seeking a reliable and long-lasting solution to enhance their engine's performance.

Technical highlights of the ASA T1-317 compressor

• Design: mechanically driven radial compressor
• Maximum speed: 105,000 rpm
• Air mass: max 1,300 kg/h
• Pressure ratio: max. > 3
• Ball bearing high speed unit for minimal friction and maximum durability
• Gas rumble seal high-speed unit: Friction and wear-free, temperature-resistant and long service life, suction throttleable
• Precision manufacturing “Made in Germany” according to automotive standards

Advantages at a glance

• Increased performance across the entire speed range
• Consistent performance without turbo lag
• Low-maintenance design for a long service life
• Compact design , ideal for a wide range of installation applications
• Proven ASA technology in original equipment, motorsport and (e.g. 24 Hours of Le Mans) and high-performance areas (space use at Space X)

Areas of application

The ASA T1-317 supercharger is used in numerous high-performance and motorsport projects. Its compact design makes it suitable for both custom tuning projects and OEM applications. Whether on the street or on the racetrack, the T1-317 delivers impressive performance every time.

Why the ASA T1-317 is the right choice

With over 30 years of experience in compressor development, ASA stands for German engineering at the highest level. The T1-317 is the result of precise development, modern manufacturing, and consistent quality control – for maximum reliability and performance.

Order now and benefit from ASA expertise.

Experience the combination of power, efficiency and quality – with the ASA T1-317 compressor.
