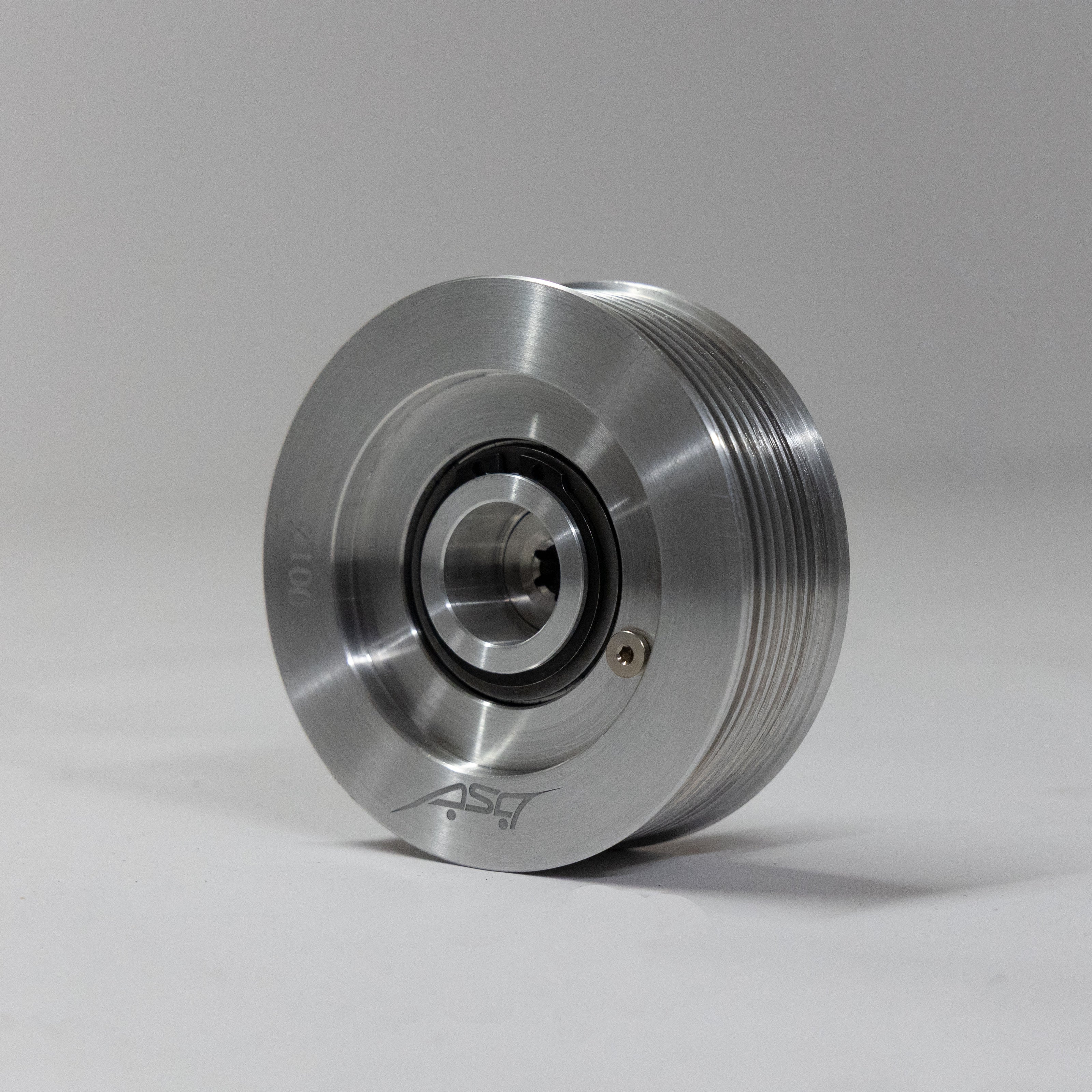

HTS pulley

Quiet operation: Smooth power flow, no gearbox rattle in the near-idle range.

Effective damping: Integrated hydraulic torsion vibration damper filters torque fluctuations and reliably prevents gear backlash noise in the compressor.

Ultra-compact: Pulleys are possible from an outer diameter of 80 mm – ideal for tight installation spaces.

Permanent power transmission: No disengagement at low speed – the torque transmission remains.

Lightweight & low inertia: Intelligent lightweight construction made of steel and aluminum – minimized inertia (rotatory and translational ) , fast start-up dynamics, low weight.

Simple service: Should increased noise levels occur after long operating times, simply replace 2 O-rings , 4 silicone dampers and some special oil with our affordable maintenance package – that's it.

Standard with 8 PK grooves => suitable for most vehicles with 6/7/8 PK poly - V belt drive

Design: Pulley with integrated HTS (hydraulic torsion) Vibration damper).

Pulley profile: 8 ribs (PK profile).

Axial position adjustable in 0.1mm increments via shims

Diameter: 80–160 mm available in 20 mm increments .

Material: High-strength aluminum, corrosion-protected.

Operation: Permanently coupled, torsionally damped.

Damping fluid: ASA special oil 2B57

Weight: Diameter 80mm approx. 250 grams ready for use

Interval: Every 3 years, or 50,000 km, or when noise levels increase.

Scope of maintenance package (P 480 12 34): 2 O-rings, syringe with hose and filled with special oil (ASA 2B57), 2 x sealing screws .

Duration: A few minutes.

Available now in combination with the T6.

Variants: 8 PK Ø 80 / 100 / 120 / 140 / 160 mm (special versions available on request).
